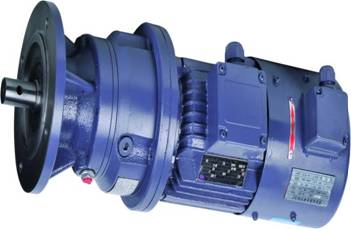

G800 机械减速机配螺杆泵一些特点
The features of G800 mechanical reducer with screw pump
1. 承载转矩大:G800系列采用行星齿轮结构,多齿啮合,输入功率分流传动,受力对称,因而能承受较其他减速机更大的超负载力矩,螺杆泵在启动时往往有过载现象,因此在对减速机配套选型时,工作系数可适当减小。
Large bearing torque: G800 series have planetary gear structure, multi-tooth engagement, symmetry force, thus input power transfer to different driving force. And the working torque is greater than other reducers. Screw pump sometimes overload at the start-up stage, so, work coefficient can be reduced properly.
2. 工作可靠,寿命长:G800内部件,大都经磨削加工,结构相对封闭, 工作时不易受外部环境影响,采用优质润滑液的状况下,有很长的寿命。
Reliable and long working life: most of the internal pieces of G800 are grinding, have relatively close structure. It is less susceptible to the external environment. By using god lubricant, the working life can be quite long.
3. 结构紧凑,体积小而美观:由于行星结构主体为柱状,与螺杆泵的结构相似,成套部件美观大方,特别是采用减速机为立式结构时,更与螺杆泵浑然一体
Compact structure and small size: the main structure is columnar structure, which is similar to screw pump. The whole structure is seamless.
4. 通用性能更强:由于电机与减速机采用标准联接,常用标准电机均可作为减速机的动力源,用户维护保养检修极为方便,当用户根据需要 可方便地更换不同的电机,如掉换变频、防爆电机等来满足不同的工况要求。
Good general performance: as the motor and reducer are standard connected, the motor can be used as the power source. It is quite convenient to maintain and change. According to different needs, the motor can be easily replaced in order to meet the different working requirements.
5. 经济性好:由于G800 螺杆泵专用减速机,其输出结构已设计了承受螺杆泵工作时的轴向推力,所以可以减少泵类的轴承座部件,不仅省成本而且结构又可靠合理。
Economy: because of the special design of the G800 mechanical reducer with screw pump, the bearing housing parts can be reduced. Thus, the cost is reduced and the structure is more reliable.

|
